 Item
Number |
: |
12001 |
| |
| Product
Name |
: |
CNC VERTICAL LATHE |
| |
| Maker |
: |
NAMUSN |
| |
| Year |
: |
NEW |
| |
| Model |
: |
NS-Ri7585 |
| |
| Specification |
: |
TURNING TABLE OUT DIAMETER mm 7,500
WORK SIZE OUT DIAMETER mm 8,500
IN DIAMETER mm 1,000
HEIGHT mm 835
CAPACITY LOAD kg 30,000
TRAVEL/SPEED X-AXIS mm 3,800x2(R/L)
Y-AXIS mm 750x2(R/L)
SPEED X-AXIS mm/min 0 � 3,000
Y-AXIS mm/min 0 � 1,200
TABLE rpm 0 - 50
MOTOR X-AXIS kw 7.5(AC)
Y-AXIS kw 5.5(AC)
TABLE kw 75 (DC)
HYDRAULIC kw 15 (AC)
LUBRICATION w 100x2
HYDRAULIC SYSTEM TANK CAPACITY L 300
MAX PRESSURE kg/cm2 140
SETTING PRESSURE kg/cm2 90
COOLANT MQL TYPE

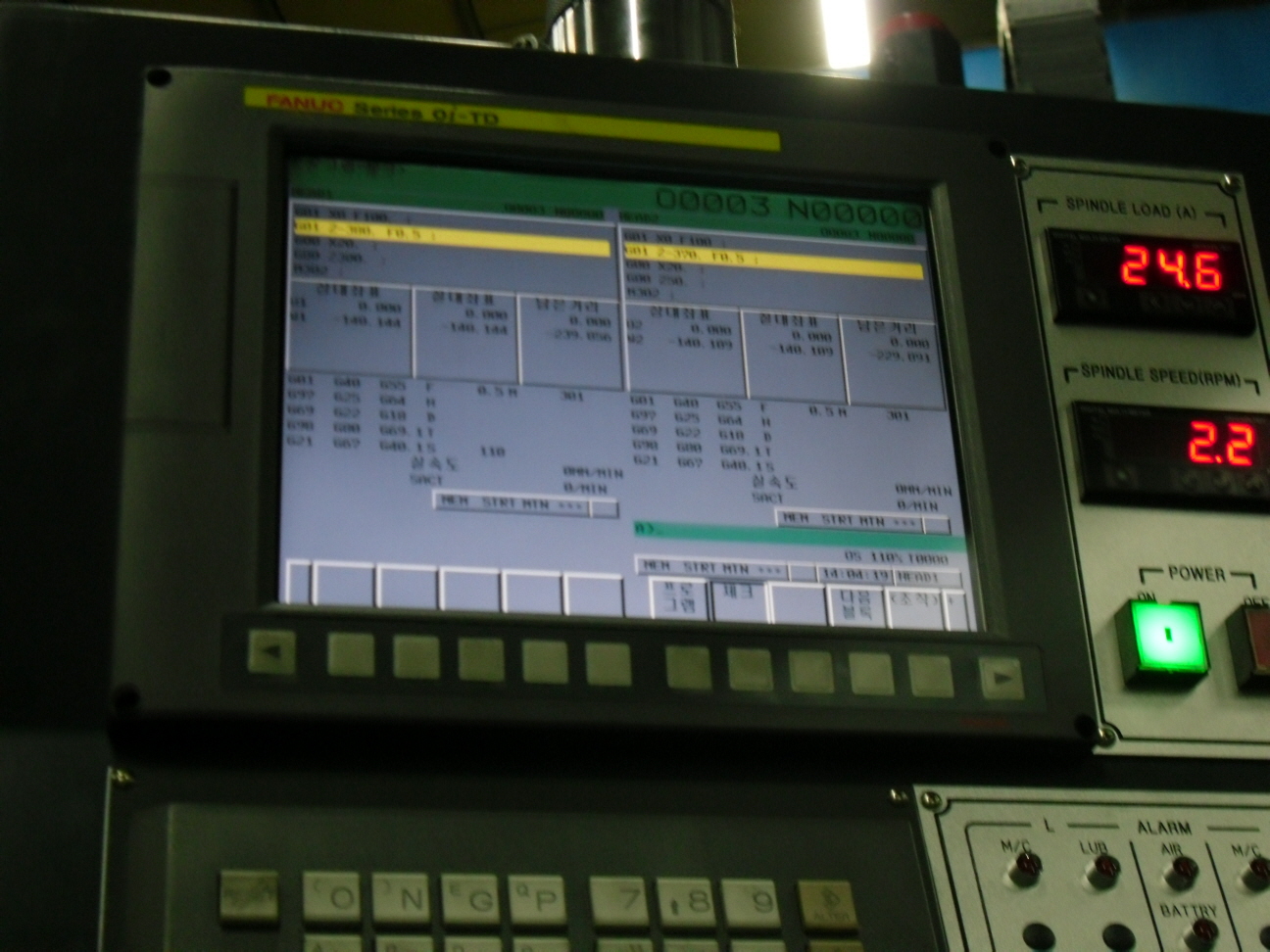

CNC SYSTEM FANUC 0iT
|
| |
| Remarks |
: |
|
| |
|
|
